High-precision IPX9K Water Spray Test Equipment with 7-inch Touch Screen and 380V Power Supply for Battery Packs and Car Lights

Name: Highprecision IPX9K Water Spray Test Equipment with 7inch Touch Screen and 380V Power Supply for Battery Packs and Car Lights
Brand: YUEXIN
Price: 14 USD

Quality High-precision IPX9K Water Spray Test Equipment with 7-inch Touch Screen and 380V Power Supply for Battery Packs and Car Lights wholesale

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-IPX9KC-48

MOQ : 1

Price : $14,666.94-17,255.23

External dimensions : W 900×D 500×H 1500 mm

Water spray distance : 100-200mm (adjustable)

Nozzle angle : 0°, 30°, 60°, 90°

Turntable diameter : ￠200mm

Turntable speed : 1-10r/min

Turntable load : 50KG

Test timing : 120S (30S per location)

Water flow : 14-16 L/min

Water temperature : Room temp (25℃) or 80±5℃

Spray pressure : 8000-10000 Kpa

Spray impact force : 0.9-1.2N

Power supply : 380V/50HZ

Power consumption : 18.0KW

Sample power : AC220, 10A

Controller type : 7-inch touch screen + PLC

Contact Now

Product Description

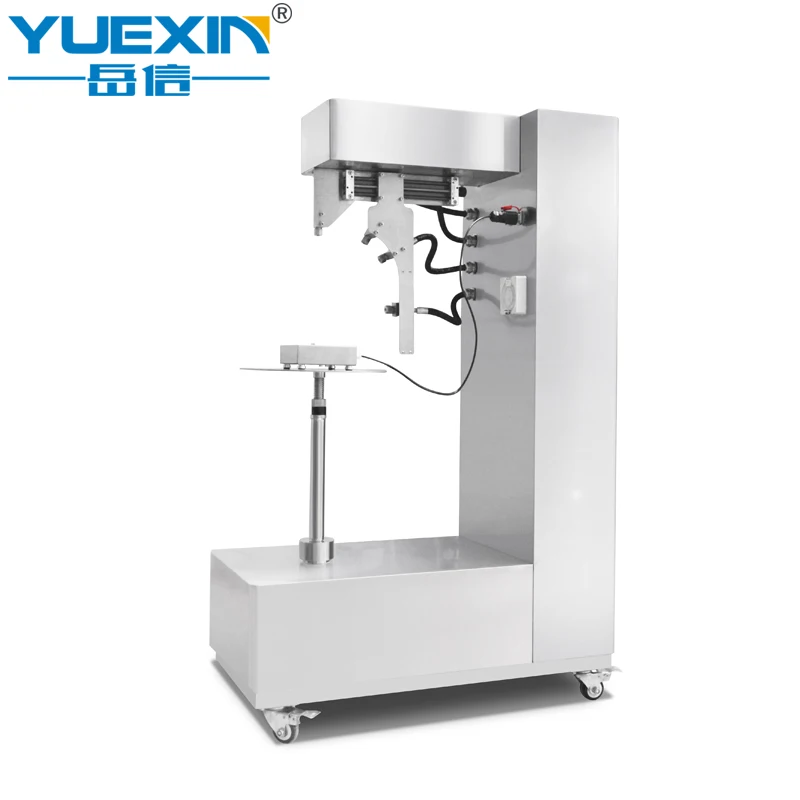

High-precision IPX9K Water Spray Test Equipment with 7-inch Touch Screen and 380V Power Supply for Battery Packs and Car Lights

Product characteristics

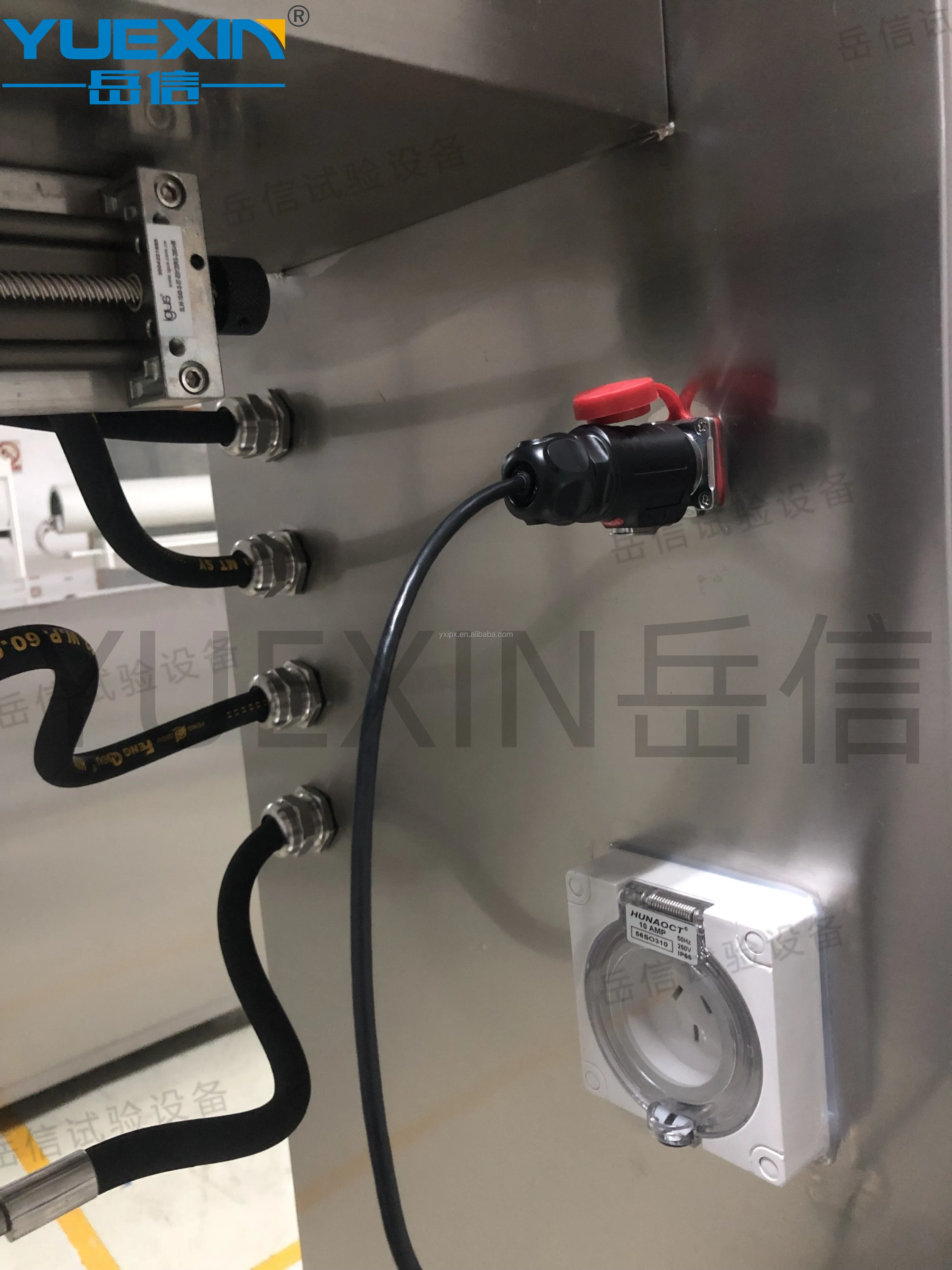

Sample power.

The test chamber is equipped with a sample power socket (AC220, 10A), and the sample power on and off time can be controlled by program.

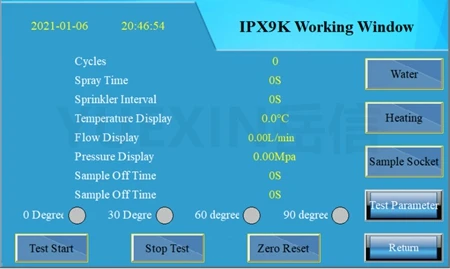

Controller.

7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages

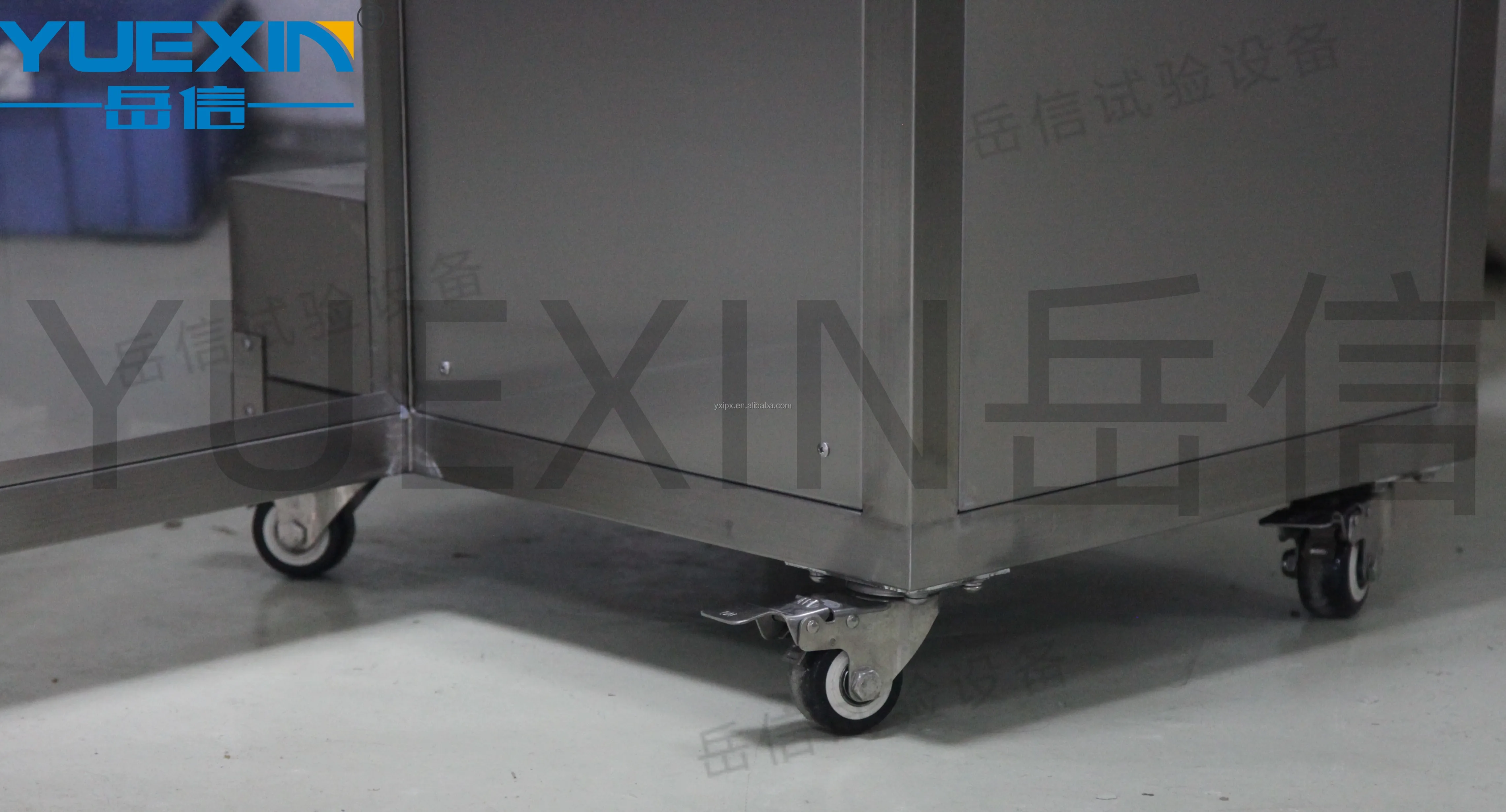

Casters.

The base of the machine is equipped with 4 movable brake castors for easy movement and fixation.

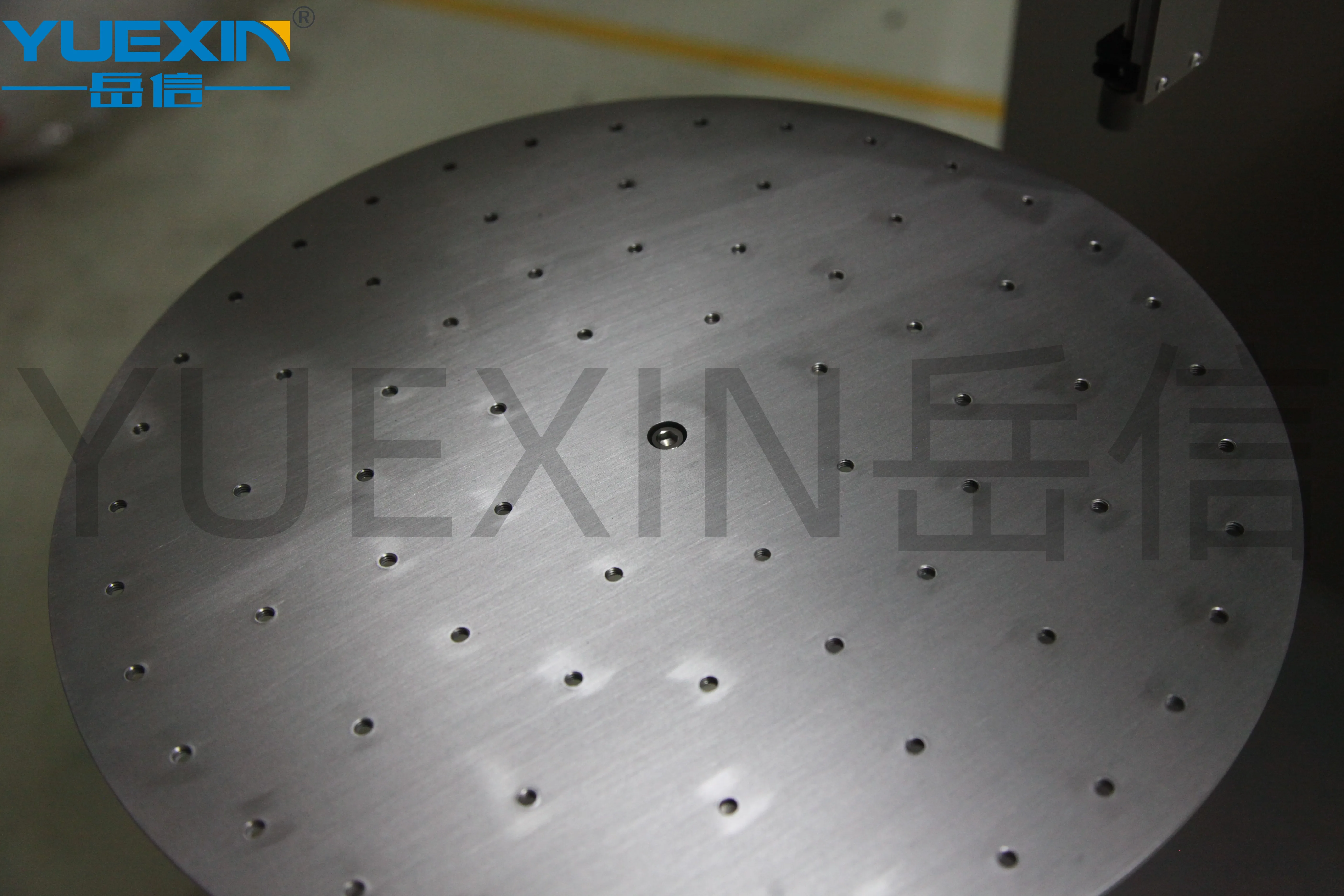

Turntable.

It is made of stainless steel and is durable.

Specification

Equipment function:

This chamber is mainly used to test the waterproof level of the shell of lamps, household appliances, electronic products, etc. by simulating the environmental conditions such as high-pressure spraying water.After the test, check and determine whether the waterproof level of the product shell meets the requirements, so as to facilitate enterprises to improve product design and factory inspection..

Model	YX-IPX9KC-48
External dimensions	Approx W 900×D 500×H 1500 (mm)
Water spray distance	100-200mm（Can be adjusted manually）
Nozzle Angle	0°、30°、60°、90°（Vertical direction）
Turn table diameter	￠200mm
Turntable speed test	1-10r/min(accurate control)
Turn table load bearing	50KG
Test the timing	120S（Each location 30S/ accurate control）
The way the turntable is lifted	Adjust it with your own hands
Water Flow	14-16 L/min
Water temperature of tank	Room temperature (25℃); 80±5℃ (Deviation temperature can be agreed)
Water spray pressure	8000~10000 Kpa
Spray impact force	0.9~1.2N（Adjustment according to standards）
protective device	Such as leakage, water shortage, short circuit, phase sequence, thermal overload
Power supply	380V/50HZ
Power	18.0KW
Standards	IEC60529:1989+A1:2013.(IPX9);ISO20653(IPX9K);IEC60598;DIN40050

Company Profile

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.

We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.

We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.

We have a excellent after-sales service team that can respond and provide solutions quickly.

We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.

We have been granted 25 patents and passed the Quality management system:ISO9001.

We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.

Warmly welcome you to visit our factory!

FAQ

1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?

Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.

If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.

2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
