IPX34 Rated Rain Test Chamber with 7-inch Touch Screen and 50kg Capacity Turntable for Water Resistance Testing

Name: IPX34 Rated Rain Test Chamber with 7inch Touch Screen and 50kg Capacity Turntable for Water Resistance Testing
Brand: YUEXIN
Price: 39 USD

Quality IPX34 Rated Rain Test Chamber with 7-inch Touch Screen and 50kg Capacity Turntable for Water Resistance Testing wholesale

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-IPX34C-R1000-164

MOQ : 1

Price : $39,204.95-46,123.48

Model : YX-IPX34C-R1000-164

Swing tube size : R1000mm

External dimensions : L2850*D2020*H2350

Inner diameter : 15mm

Turntable diameter : 800mm

Water pore size : 0.4 mm

Pendulum tube angle : 120°(IPX3),350°(IPX4)

Swing speed : 120°(to and fro) 4S,350(to and fro)12S

Swing pipe material : SUS304 stainless steel

Turntable speed : 1-5r/min

Power supply : 220V

Power : 1KW

Turntable load capacity : 50kg

Operation interface : 7-inch touch screen + PLC

Protective devices : Leakage, water shortage, short circuit

Contact Now

Product Description

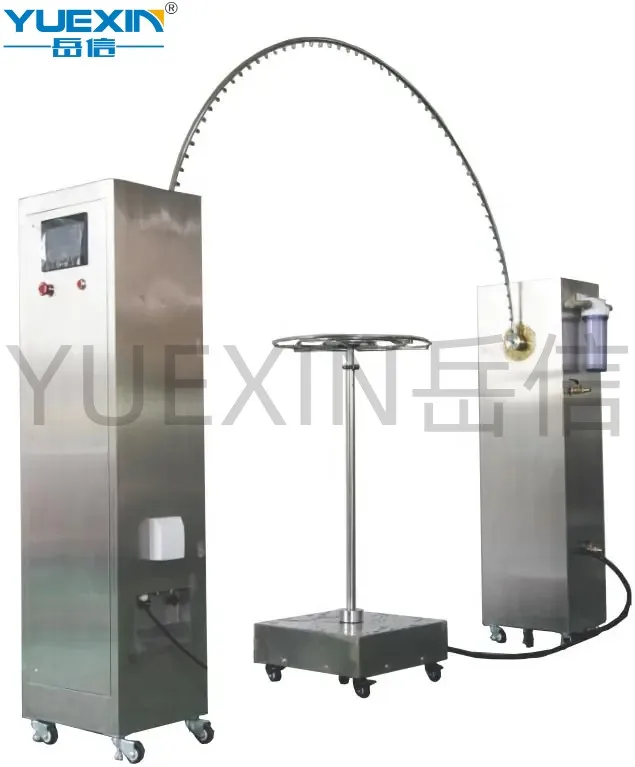

IPX34 Rated Rain Test Chamber with 7-inch Touch Screen and 50kg Capacity Turntable for Water Resistance Testing

Specification

Equipment function:

The main function of this device is to test the physical and other related performance of electronic and electrical products, lamps, cabinets, electrical components, cars, motorcycles, and their components under simulated rainy weather conditions. After testing, the performance of the product is determined through verification to determine whether it meets the requirements, in order to facilitate product design, improvement, verification, and factory inspection.

Model	YX-IPX34C-R1000-164
Swing tube size	R1000mm
External dimensions	L2850D2020H2350
Inner diameter of swing tube	15mm
Turntable Diameter Size	800mm
Water pore size	0.4 mm
Pendulum tube angle	120°(IPX3),350°(IPX4)or customize
Swing speed tube	120°(to and fro) 4S,350(to and fro)12S(accurate control)or customize
Swing pipe material	SUS304 stainless steel
Turntable speed test	1-5r/min(accurate control)
protective device	Leakage, water shortage, short circuit
Power supply	220V
Power	1KW
Standards	IEC60529:1989+A1:2013.(IPX3,IPX4)；ISO20653;IEC60598;DIN40050

Product characteristics

Low water level alarm

The water storage tank has a low water level alarm device to prevent the water pump from idling

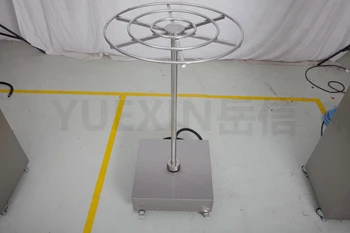

Turntable

Made of stainless steel, with a load-bearing capacity of 50kg and adjustable height.

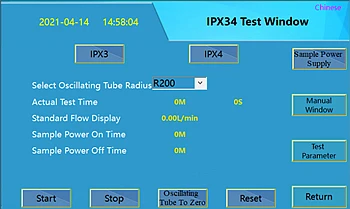

Operation interface.

7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages

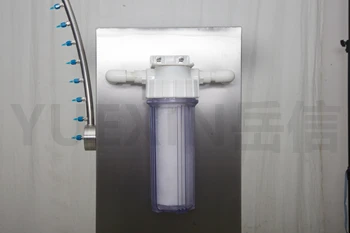

Filter

A portable filter is installed on the outside to clean the water. When darkening is observed, the filter element can be replaced.

Company Profile

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.

We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.

We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.

We have a excellent after-sales service team that can respond and provide solutions quickly.

We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.

We have been granted 25 patents and passed the Quality management system:ISO9001.

We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.

Warmly welcome you to visit our factory!

FAQ

1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?

Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.

If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.

2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
