Professional Grade IPX1/IPX2 Rated Rain Test Chamber with 1200*1200mm Dripping Area and SUS304# Material

Name: Professional Grade IPX1IPX2 Rated Rain Test Chamber with 12001200mm Dripping Area and SUS304 Material
Brand: YUEXIN
Price: 54 USD

Quality Professional Grade IPX1/IPX2 Rated Rain Test Chamber with 1200*1200mm Dripping Area and SUS304# Material wholesale

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-IPX12B-1200-154

MOQ : 1

Price : $54,274.41-63,852.25

Model : YX-IPX12B-1200-154

Dripping area : 1200*1200mm

Inner box size : L1400*D1400*H1450mm

Outer dimension : L1840*D1600*H2150mm

Turntable diameter : 800mm

Nozzle aperture : 0.4mm

Aperture distance : 20*20mm

Dripping volume : 1~1.5 mm/min(IPX1)；3~3.5 mm/min(IPX2)

Flow adjustment : Manual adjustment (rotameter)

Turntable lifting height : 400-600mm

Turntable weight : 80KG

Turning speed : 1 r/min (IPX1) or custom setting

Turntable decline degree : 0 ° or 15 ° (horizontal direction)

Test time : 0-999 min

Voltage : 220V

Power : 1.0KW

Material : SUS304# stainless steel

Contact Now

Product Description

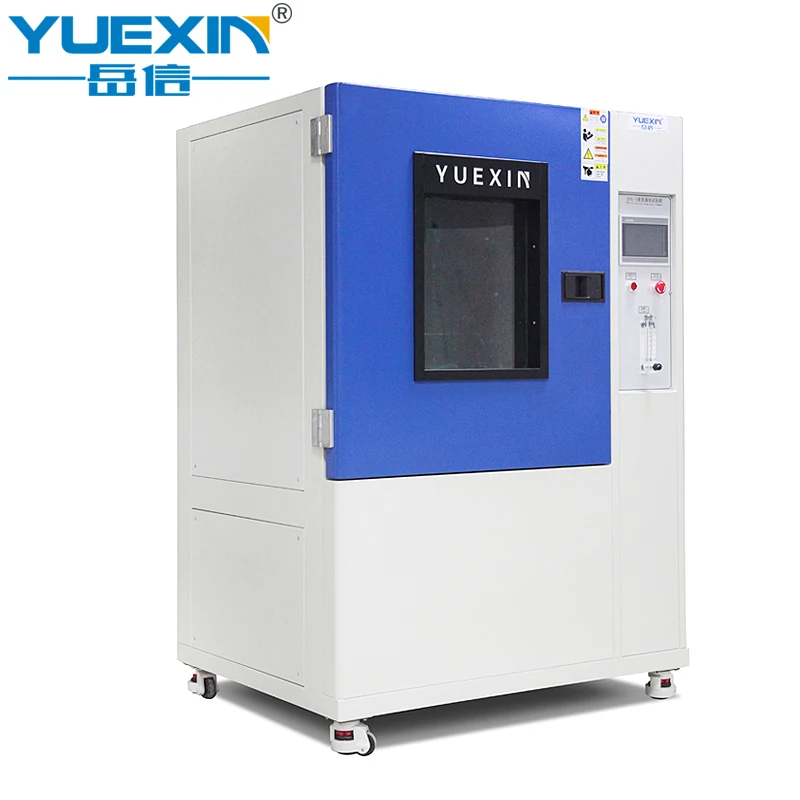

Professional Grade IPX1/IPX2 Rated Rain Test Chamber with 1200*1200mm Dripping Area and SUS304# Material

Specification

This Machine is mainly used to test the waterproof level of the shell of lamps, household appliances, electronic products, etc. by simulating the environmental conditions such as driping/raining. After the test, check and determine whether the waterproof level of the product shell meets the requirements, so as to facilitate enterprises to improve product design and factory inspection.

Model	YX-IPX12B-1200-154
Dripping area	1200*1200mm
Equipment inner box size	L1400D1400H1450mm
Outer dimension	L1840D1600H2150mm
Turntable diameter	800mm
Nozzle aperture	0.4mm
Aperture distance	20*20mm
Dripping volume	1~1.5 mm/min(IPX1；3~3.5 mm/min(IPX2)
Flow adjustment	Manual adjustment (rotameter)
Turntable lifting height	400-600mm
Turntable weight	80KG
Turning speed	1 r/min (IPX1) or custom setting
Turntable decline degree	0 ° or 15 ° (horizontal direction)
Test time	0-999 min
Protection device	Leakage, water shortage, short circuit
Voltage(V)	220V
Power(KW)	1.0KW
The reference standard	ISO20653:2013；IEC60529:2013；IEC60598:2021；DIN40050-9:1993

Product characteristics

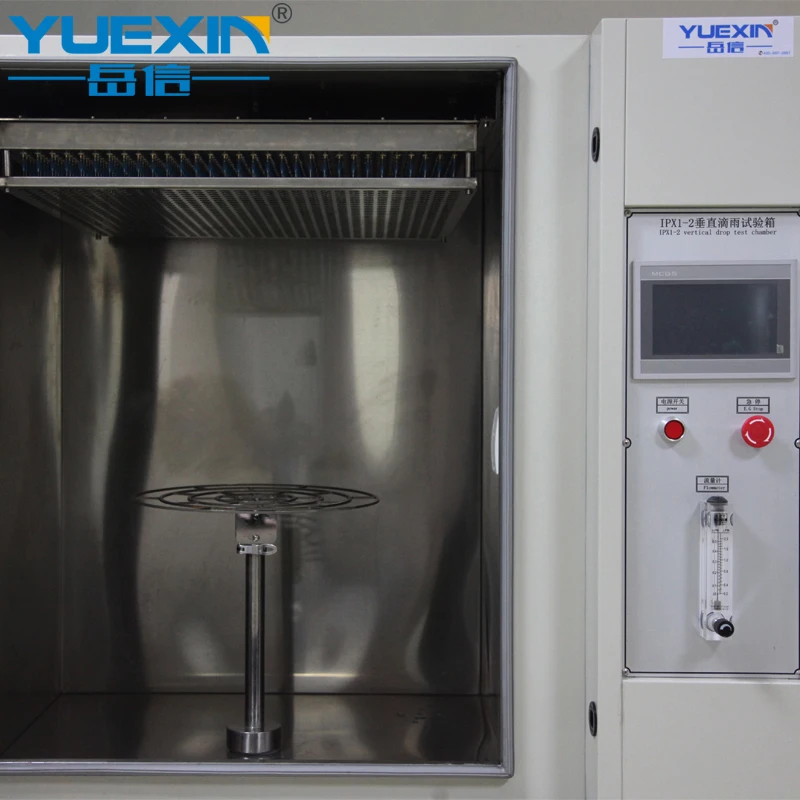

Equipment inner box.

The drip plate, equipment inner box, turntable and other wading parts are all made of SUS304# stainless steel to ensure that it will not rust for a long time.

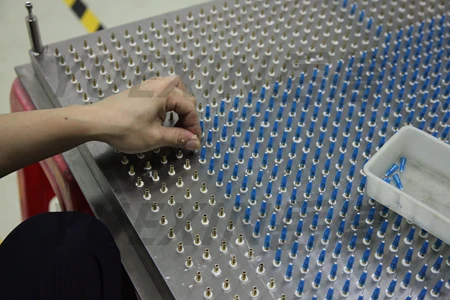

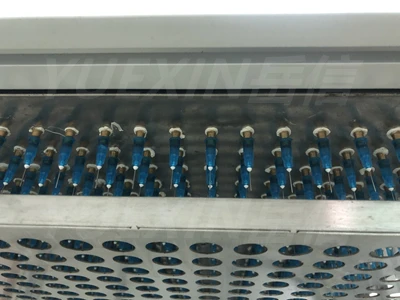

Dripper board.

Nozzle contact position brass conical design, dripping rain plate with vacuum design, high rust resistant stainless steel material, durable.

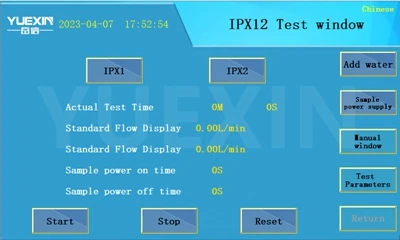

Operation interface.

7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages

Grid guard.

A stainless steel grid shield is installed under the needle to effectively prevent the test operator from accidentally touching the test needle and injuring it.

Company Profile

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.

We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.

We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.

We have a excellent after-sales service team that can respond and provide solutions quickly.

We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.

We have been granted 25 patents and passed the Quality management system:ISO9001.

We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.

Warmly welcome you to visit our factory!

FAQ

1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?

Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.

If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.

2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
